BUILD YEAR 2015
DIMENSIONS:
Length, Overall: 12.0 m
Beam Overall (with fender): 3.0 m
Draft (full load, hull): 0.95 m
Displacement (full load): 6.400 kg
Cabin: 4, air supported seats
OPERATIONAL FEATURES
Speed (max): +27 kt
Fuel capacity: approx. 350 ltr.
HULL, DECK AND SUPERSTRUCTURE:
The boat is made of a combination of glass- and carbon fibre as
sandwich construction with PVC as core material.
FENDER:
The fender is composed of rigid foam filled profile, covered with
PUR, to guarantee maximum buoyancy. The fender has a D shape
profile to increase the internal usable beam.

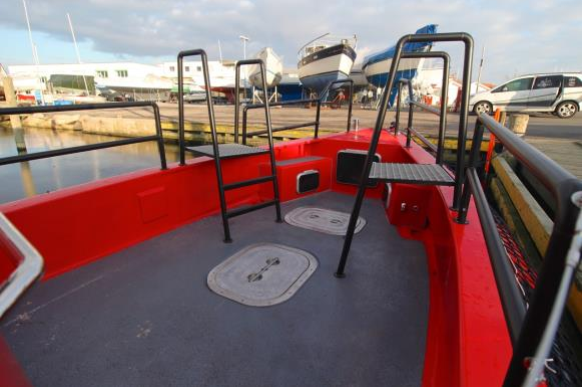

DECK:

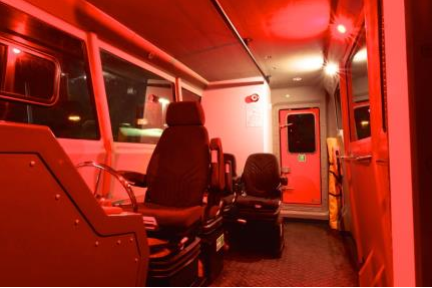

Composite deckhouse featuring seats for passengers and crew.
Both decks can be accessed from the cabin.
Removable deck sections to access bow thruster compartment and
fuel tank.
Stowage for mooring equipment.
Railings and transfer ladders.
5 mooring bites.
Foldable mast.
Decks are self bailing.
Navigational lights.
Three mooring cleats.
T E C H N I C A L
ENGINES, PROPULSION, STEERING & MANOUVERING:
1 x Volvo Penta D6 330hk
1x Craftsmann side thruster
Complete engine instruments with RPM, temperature, oil pressure
and voltmeter for start batteries supplied by engine manufacturer.
FUEL TANK:
Integrated composite approx. 350litre tank with hatch and filling
protection.
Electronic fuel gauge for tank.
All fuel systems are pressure tested.
ELECTRICAL SYSTEM & LIGHTING:
All electrical wiring in marine cable.
12-volt electrical system.
Windshield wiper with interval relay, standing position.
Internal light in cabin.

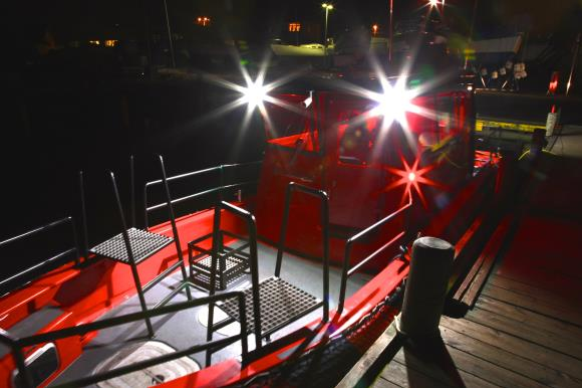

Work light, type LED.
Search light installed in front of cabin
Integrated 220V shore charge system, including 20m shore cable.
Inverter for 220V outlet in cabin
Main switches with separate battery systems for start,
navigation / consumption.

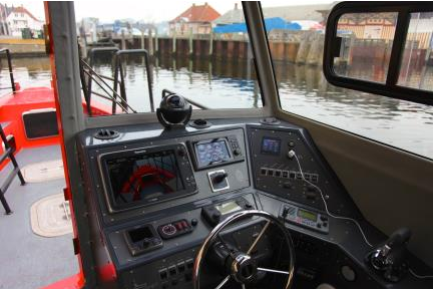

NAVIGATION & ELECTRONIC EQUIPMENT
1 x 12” Chart plotters RayMarine E125
1 x Ray49E radio, 1x Ray218E radio with hailing horn
1 x closed 4 kw radome
Depth sounder
1 x Evolution autopilot
1 x Plastimo compass.
1 x Sailor VHF
SECURITY EQUIPMENT:
Automatic and manual bilge pump system.
Fire extinguisher at helmsman station. SeaFire module in
engineroom. 6 pax Zodiac liferaft.
