Article

Unofficial internal company timeline report of the ship accident in Busan 6 April 2020


by Marine-Pilots.com - published on 14 April 2020 12702 -

Source: "ONE - MSQ Accident News No. 31"

Summary
ONE operated 13,900 TEU vessel “M/V Milano Bridge” (built 2018) collided with gantry cranes and another vessel while approaching berth at PNC #8. This was the first berthing for phasing-in after dry dock. It is understood the vessel was scheduled to be fitted with a scrubber.

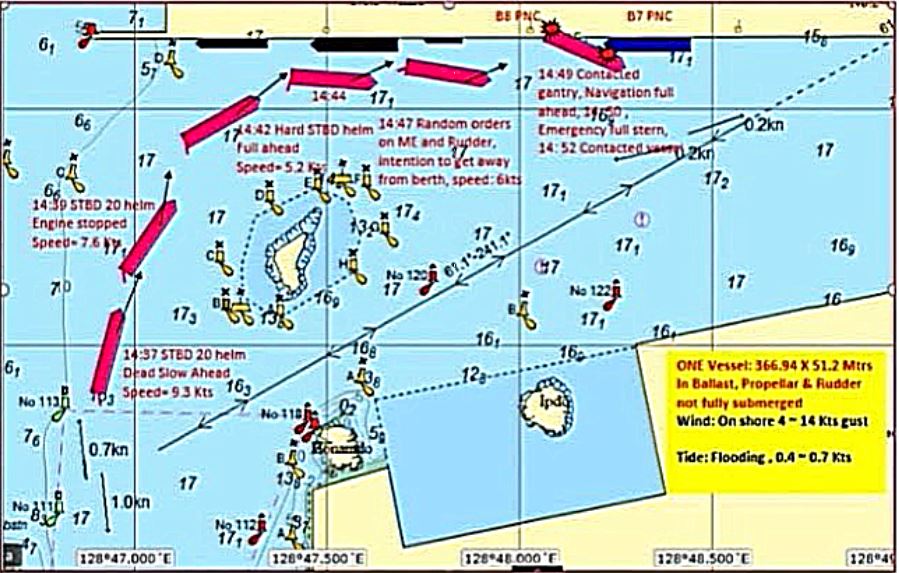

Timeline (LT)
Two tugs in action throughput below the timeline, FWD and AFT, could not provide adequate pull due to the high FWD speed, use of bow thruster not fully known.

14:37
Commenced STBD turn, STBD 20 Helm, Dead Slow ahead, Speed 9,3 kts.

14:39
Stopped engine, Speed 7,6 kts

14:40
Pilot appeared panicked, Speed 7,6 Kts, Dead Slow ahead, STBD 20 helms.

14:42
Pilot realizes heavy drift to port, panicked, full ahead engine, hard STBD helm, concerned to avoid three moored vessels. AFT tug continuously pulling.

14:44
Cleared first moored vessel, drifting towards the second moored vessel, Navigation full ahead, STBD 20 helm, drifting further towards the berth. FWD tug's action not known as pilot speaking in the local language. Master used BT.

14:47
Cleared second moored vessel, random orders on ME and rudder, stern drifting towards port side, Speed 6 Kts.

14:47
Cleared lesser beamed the third vessel.

14:49
Made hard contact with Gantry Crane No. 85, fully collapsed on stern of the vessel. ME Navigation full ahead, Speed 5,2 Kts. FWD tug not pulling.

14:50
Emergency full stern to prevent contact with moored vessel ahead.

14:52
Hard contact with Gantry Crane No. 81 by bridge wing, which was working on the moored container vessel ahead followed by slight contact with moored vessel around Bay 02 & 06.

timeline end...

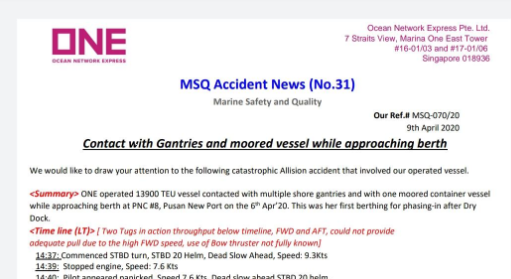

Fragment of the internal report

Watch also (video of the accident)
Watch also (video of AIS track)

Additional information by TradeWinds:
According to a report of TradeWinds (www.TradeWindsNews.com) the "Milano Bridge" is owned by Japan’s K Line. However it is on charter to One Ocean Network (ONE), the all-Japanese boxship joint venture company.

“ONE is urgently looking into the circumstances of this (accident) and is giving full co-operation to the terminal operators and the local authorities in Busan,” it said.

The commercial management of the ship is with K Line. But its International Safety Management (ISM) manager is listed by port state control data base Equasis as Singapore based Fleet Management.

The vessel is listed as owned by MI DAS Shipping, a company linked to Japanese shipowner Doun Shipping.

The ship’s protection and indemnity cover is with the Japan P&I Club which is likely to face a costly claim as a result of the accident.

Similar crane and ship collisions in the past have run up claims running up to tens of millions of US dollars for P&I insurers, which are liable for the loss of the crane and the ship but also disruption caused to the port as a result of the accident.

EDITOR'S REMARK:
We only report on the incident objectively and we do not allow ourselves to make a quick judgement about what happened.
This is a terrible accident, especially for the involved crews on ships and cranes, the captain and the pilot. Please have respect for the people! We will have to wait for the investigation and will continue to report on it.

Join the conversation...

Login or register to write comments and join the discussion!
PA
Pravin Athawale India
on 17 April 2020, 04:22 UTC

Pilot remark is in bad taste.
Bridge team should have taken action in advance to reduce the speed.
0

Frank Diegel Germany
on 14 April 2020, 15:27 UTC

We have decided to use the original wording of the report here, although from our point of view this is already an evaluation. This can only be associated with a voice recording.
We are working to preserve the report in its original and full length. Obviously it was produced internally by ONE and a voice recording was used.
0

René Hartung Lotsenbrüderschaft NOK II Kiel / Lübeck / Flensburg, Germany
on 14 April 2020, 15:07 UTC

Who wrote the report? Why did the pilot appear panicked? Is this remark being sone after having heard the VCR recording?
0
