Navigation alternative in the event of GNSS failure due to jamming or spoofing


by TRENZ GmbH - published on 7 April 2025 1549 -

Credit: DLR - German Space Agency

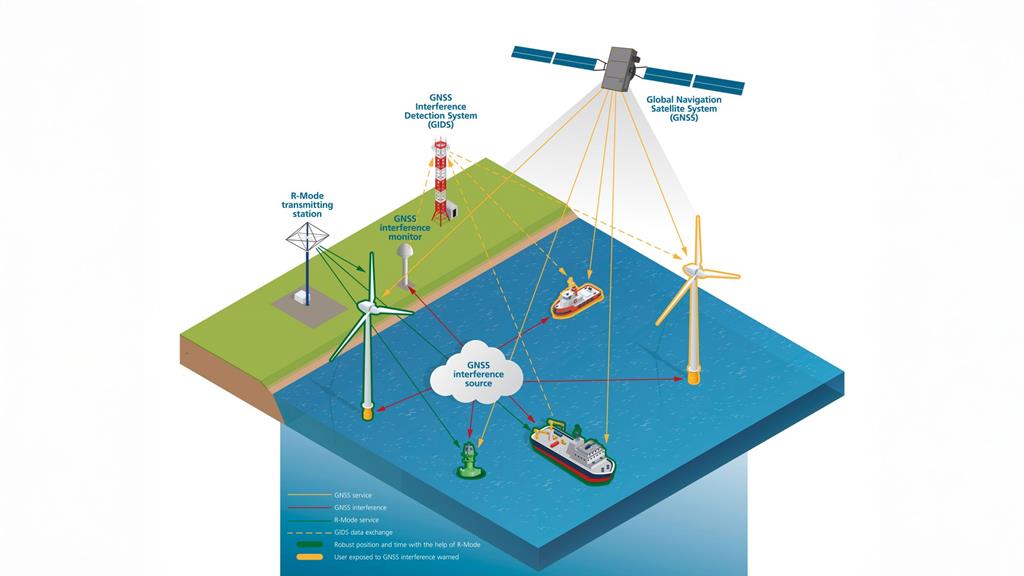

R-Mode – Navigation Safety Without Satellites: A Terrestrial Backup for Commercial Shipping.

What happens when GNSS fails? In maritime navigation, this isn’t a hypothetical scenario – it’s a growing risk. Spoofing, jamming, and GNSS outages are increasing, especially in the Baltic Sea region. A failure can cripple navigation systems – with potentially serious consequences.

The answer: R-Mode – a terrestrial backup system that operates independently of satellites. Developed for real-world maritime use. Tested in the Baltic. Ready for the next phase.

Satellite-based navigation via GPS, Galileo, or GLONASS has become an essential part of modern maritime operations. But what happens in the case of deliberate interference (jamming), spoofing, or system failures? For maritime professionals such as harbor pilots, VTS operators, and bridge crews, the failure of satellite navigation systems can have severe consequences—particularly in congested traffic situations, during port approaches, or in narrow shipping lanes. This is exactly where R-Mode (Ranging Mode) comes into play as a terrestrial backup navigation system.

What Is R-Mode?

R-Mode is a radio-based navigation system that utilizes existing maritime radio services—primarily medium frequency (MF) and very high frequency (VHF) transmissions. It determines a vessel's position through the analysis of the signal travel time of continuously transmitted radio signals, applying the principle of hyperbolic navigation (similar to LORAN-C).

Controlled modulations are overlaid onto existing transmission systems, such as DGPS, DGNSS, or NAVTEX stations. Special R-Mode receivers on board analyze signal phases or time differences from multiple transmitters to calculate a two-dimensional position, typically accurate to within 10–20 meters—entirely independent of satellite signals.

Pilot Projects and Standardization

Since 2017, the German Aerospace Center (DLR) has been operating an R-Mode testbed in the southern Baltic Sea in cooperation with European partners. This testbed currently consists of eight transmitters located between Helgoland and Stockholm. Based on a new multilateral frequency agreement, the system is expected to be significantly expanded by 2026. The goal is to establish a standardized, interoperable R-Mode infrastructure across Germany, Poland, Sweden, Finland, and Estonia, with internationally harmonized signal structures.

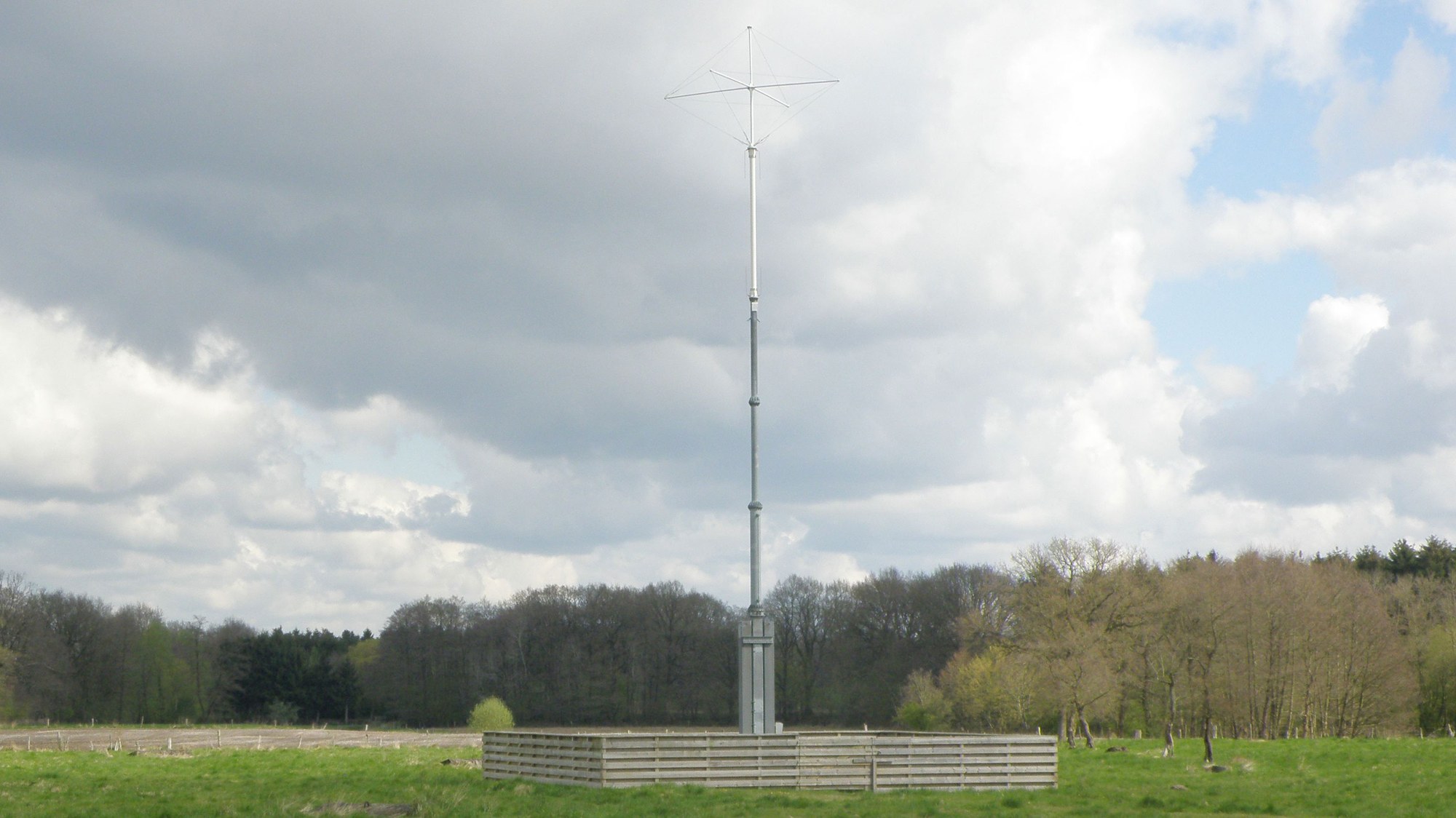

R-Mode station. Credit: DLR - German Space Agency
R-Mode station. Credit: DLR - German Space Agency
R-Mode station. Credit: DLR - German Space Agency
R-Mode station. Credit: DLR - German Space Agency

Technical Background and Advantages

  • Frequency ranges: Mainly MF (283.5–325 kHz), selectively VHF.
  • Positioning method: Time-of-arrival and phase-difference analysis of signals.
  • Resilience: Independent of GNSS; robust against jamming and spoofing.
  • Cost efficiency: Reuse of existing coastal radio infrastructure.
  • Availability: Particularly relevant for coastal areas and high-traffic maritime corridors.
R-Mode supports the IMO and IALA e-Navigation strategies aimed at improving the resilience of Positioning, Navigation, and Timing (PNT) services. Looking forward, R-Mode is also expected to play a role in multi-sensor data fusion as part of integrated bridge systems.

Outlook

For pilots, navigational officers, and port authorities, R-Mode represents a strategically important building block for maintaining navigational capabilities in the event of GNSS failure. The planned operational readiness of the expanded Baltic testbed by 2026 marks a major milestone toward establishing a satellite-independent, resilient navigation infrastructure for European commercial shipping.
