TRENZ Introduces SIRIUS+: The Next Generation PPU with Enhanced Performance


by TRENZ GmbH - published on 15 May 2025 2193 -

Source: TRENZ, the SIRIUS+

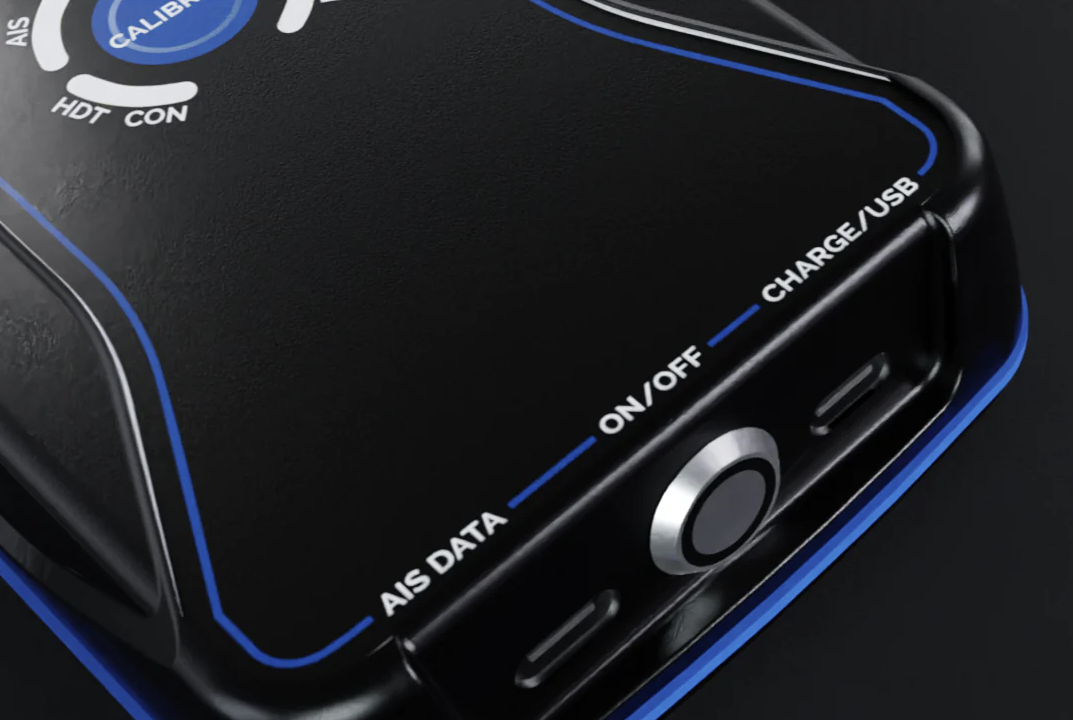

The TRENZ SIRIUS+
TRENZ, a leading manufacturer from Germany, is expanding its product lineup with the launch of SIRIUS+, a high-performance Portable Pilot Unit (PPU). As an evolution of the widely recognized SIRIUS model, the new device features cutting-edge technology designed for maximum precision and reliability, particularly for use on Ultra Large Container Vessels (ULCVs).

Equipped with dual external antenna ports and an advanced Hexa IMU, SIRIUS+ delivers enhanced accuracy and performance for professional maritime navigation. The integration of six Inertial Measurement Units (IMUs) significantly improves data precision, while the addition of RTK (Real-Time Kinematic) correction capability ensures centimeter-level positioning accuracy—critical for demanding pilotage operations.

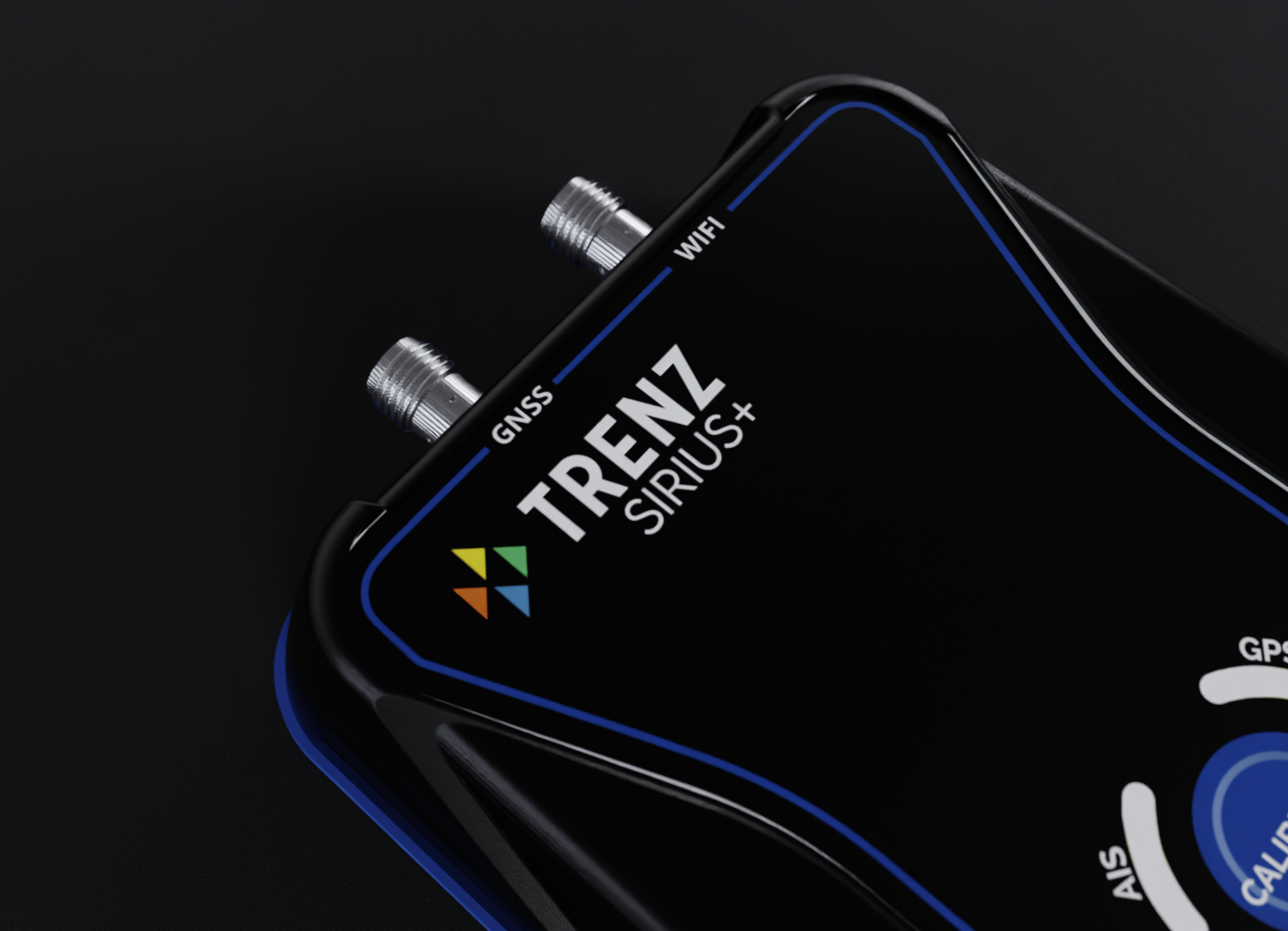

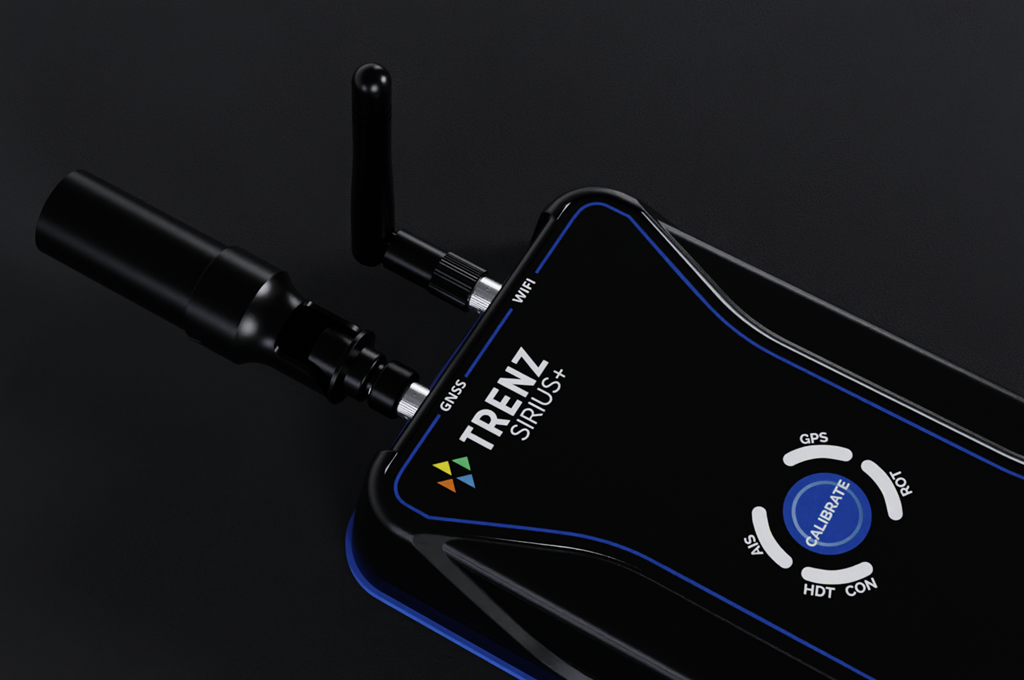

Despite its enhanced technology, SIRIUS+ remains one of the lightest PPUs in its class, weighing just 290 grams. A key improvement is the extended WiFi range, enabled by an external WiFi antenna, while an additional GNSS antenna port allows for flexible positioning within the ship’s bridge. This ensures optimal GNSS reception, independent of the Pilot Plug’s location.

SIRIUS+ also features a faster startup time: it is operational within 15 seconds and provides a ship-independent Rate of Turn (ROT) in just 30 seconds. Additionally, a larger battery extends the operational time by 30 percent, offering up to 31 hours of continuous use.

The SIRIUS+ is now available for order and delivery via the TRENZ online store at
www.trenz-ppu.com
with a limited-time introductory price.
