Example of a passage and berthing plan


by Marine-Pilots.com - published on 19 June 2020 1028 -

Graphics and text by Tim Cummins, Harbour Pilot / Assistant Harbour Master (Portsmouth International Ports

As part of a good Master-Pilot exchange (MPX) the passage plan and berthing plan is discussed with the bridge team.
This is important to enhance the safety of the vessel’s passage through the port and to improve co-operation between bridge team and pilot.

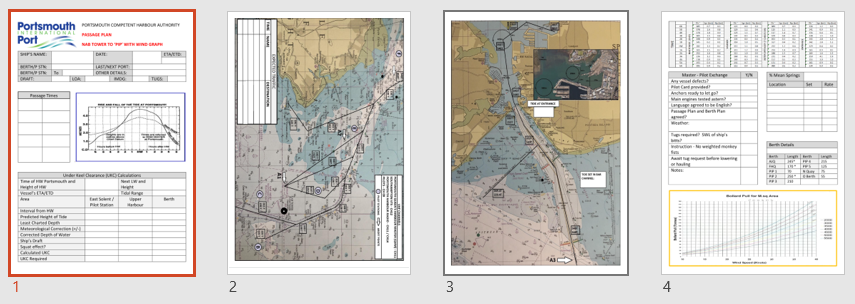

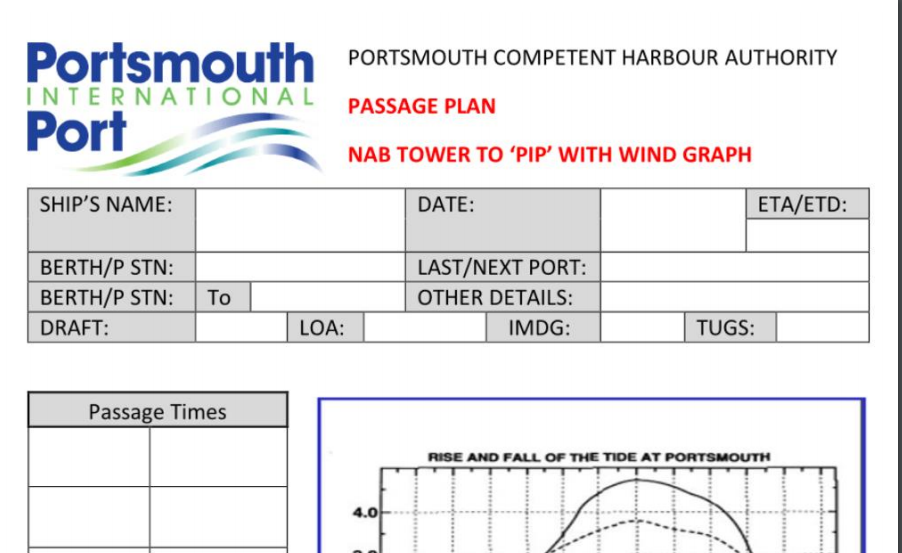

Here is the latest passage plan we use at Portsmouth International Port that we show to the Master’s of inbound and outbound ships.
Download / open passage & berthing plan example (PDF)


Editors note:
We think it is a good thing to show us our passage and berthing plans to improve our work.
If you also want to publish your documents to our big community, please send it to us:
info@marine-pilots.com

Editor's note:
Opinion pieces reflect the personal opinion of individual authors. They do not allow any conclusions to be drawn about a prevailing opinion in the respective editorial department. Opinion pieces might be deliberately formulated in a pronounced or even explicit tone and may contain biased arguments. They might be intended to polarise and stimulate discussion. In this, they deliberately differ from the factual articles you typically find on this platform, written to present facts and opinions in as balanced a manner as possible.

Join the conversation...

Login or register to write comments and join the discussion!
TC
Tim Cummins Portsmouth International Port Portsmouth Pilots, United Kingdom
on 12 July 2020, 13:45 UTC

Thank you. This passage plan was based on requirements and suggestions written in the MCA guidance document to the Port Safety Management Code (PSMC).
It has since been amended to include “Not to be used for navigation”. This was mistaken omitted from the first version.
0

MW
Marek Waszczuk ABP - Associated British Ports, United Kingdom
on 22 June 2020, 13:09 UTC

It looks like a complex, modern plan that includes all informations needed to carry on a safe passage. Something, that pilot appreciate, instead of need to look a tens of different websites or printouts to gather all informations required to complete an obsolete handwritten passage plan.
